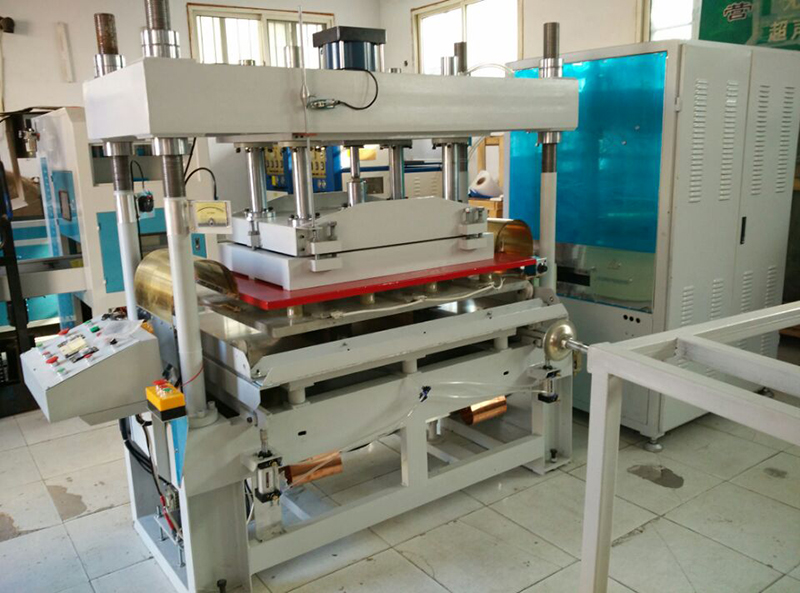

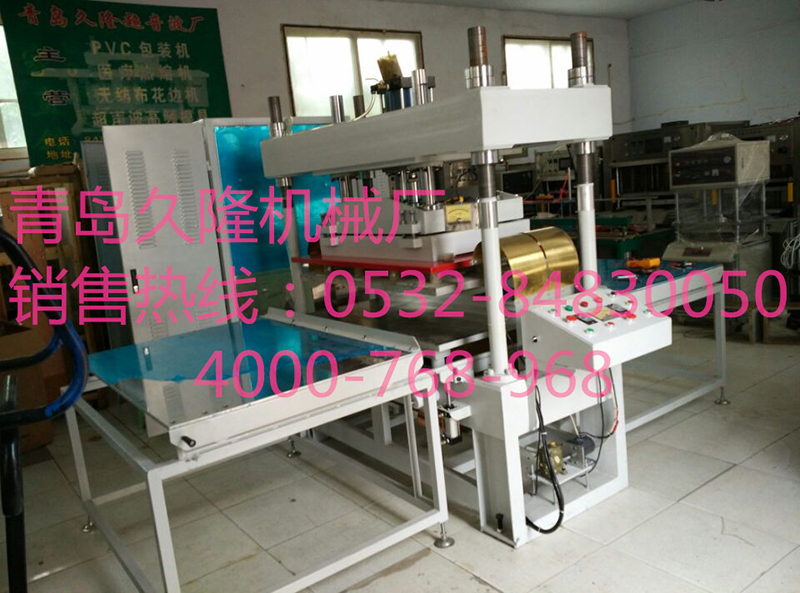

水上用品充气用品热合熔接机

水上用品充气用品热合熔接机

发布时间release time:2020-8-13 8:58:51

来源source:http://www.qdjiulong.com/product607043.html

在线咨询Online consultation 全国热线National Hotline
13969760683
产品简介Product

      山东久隆高周波机械设备特点:

      ◆高Q值电子振荡管,输出稳定可靠;

      ◆推盘式结构,省时省力,操作便捷;

      ◆机械式工作台面定位装置,定位准确;

      ◆优质进口元器件组装;

      ◆采用高感度火花防止器,打火时模具受损程度降至较低 ,减少产品的报废率。

      ◆安装了双电动工作台,降低了操作人员的劳动强度,有效的提高了生产效率。


      用途:

      较适合用于大型卷宗、熔接大型水床,大型地毯、吸塑折盒、电子、家电、吹气玩具、文具、日用品业、汽车、皮包手袋、通信行业、手袋压花、地毯、化妆品、任何P.V.C或P.V.C含量在10%以上之软硬胶熔接。

      适用原料:APET、PET、PETG、PVC、TPR、TPV、其他产品效果稳定,延边圆滑,手感良好。


      技术规格 :

机 型   JL-20000WS   JL-35000WS

高周波功率   15000W   35000W

电源电压   380V   380V

输入功率   60KVA   80KVA

整流器   矽二极体    矽二极体

振荡管    8T25RB    8T87RB

较大压力    1500KG    2000KG

较大电极间隔    250mm    250mm

焊头活动尺寸   200mm    200mm

时间控制    0-10S可调    0-10S可调

操作方式方    全气动控制    全气动控制

外形尺寸   3500*2800*1900(mm)    3800x2900x2000mm

净重    2300KG    2500KG

      公司工厂专业配套制作模具,拥有生产模具的 设备和检测设备。专业生产各类吸塑模具,高频模具,电木模模具,吸塑铝模,高频模,电木模,热合模,热封模等!


      高周波膜结构熔接机用途:

      高周波膜结构焊接机广泛应用于:增强布、汽车篷布、帆布接驳、帐篷布熔接、PVC涂层布焊接、膜结构拼接、户外膜结构焊接、PVC沼气池熔接、户外遮阳布熔接、广告喷绘布焊接、PVC充气用品、帆布拼接、帐篷布熔接遮阳篷雨篷、膜结构焊接、PVC气囊、PVC夹网布熔接、轻轨站台、体育看台、大型网球场、活动折叠篷、帆布接驳、电影幕布熔接、户外膜结构焊接、户外遮阳布熔接、广告喷绘布焊接、PVC充气用品、PVC布熔接或含有PVC成分的任何材质的软性塑胶塑料的高周波熔接或拼接、软门帘拼接等。

      PVC布熔接或含有PVC成分的任何材质的软性塑胶塑料的高周波熔接或拼接。通过高周波的原理,用来做高周波PVC沼气池熔接、PVC蓄水池熔接、PVC儿童游泳池熔接,也可以用来做高周波汽车篷布帆


Features of Shandong Jiulong High Frequency Machinery Equipment:


◆High Q value electronic oscillator, stable and reliable output;


◆Push plate structure, saving time and effort, convenient operation;


◆Mechanical table positioning device, accurate positioning;


◆High quality imported components assembly;


◆Using a high-sensitivity spark preventer, the damage to the mold is reduced to a lower level during ignition, reducing the scrap rate of the product.


◆The installation of double electric workbenches reduces the labor intensity of operators and effectively improves production efficiency.


use:


More suitable for large files, welding large water beds, large carpets, blister folding boxes, electronics, home appliances, inflatable toys, stationery, daily necessities, automobiles, leather handbags, communication industries, handbag embossing, carpets, cosmetics, any PVC or PVC content above 10% soft and hard glue welding.


Applicable raw materials: APET, PET, PETG, PVC, TPR, TPV, other products have stable effect, smooth Yanbian and good hand feeling.


Technical specifications:


Machine type JL-20000WS JL-35000WS


High frequency power 15000W 35000W


Power supply voltage 380V 380V


Input power 60KVA 80KVA


Rectifier Silicon Diode Silicon Diode


Oscillation tube 8T25RB 8T87RB


Larger pressure 1500KG 2000KG


Larger electrode spacing 250mm 250mm


Active size of welding head 200mm 200mm


Time control 0-10S adjustable 0-10S adjustable


Operation method Full pneumatic control Full pneumatic control


Dimensions 3500*2800*1900 (mm) 3800x2900x2000mm


Net weight 2300KG 2500KG

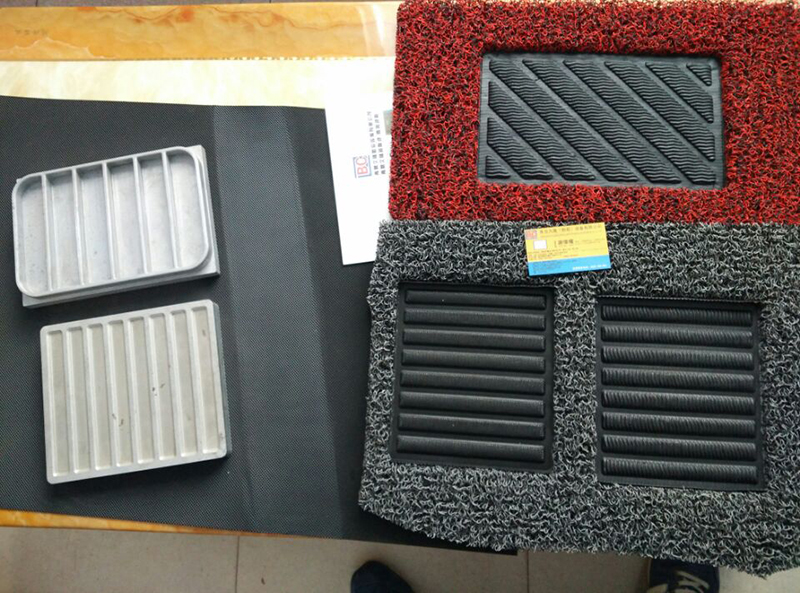

The company's factory specializes in making molds, and has equipment for mold production and testing equipment. Specializing in the production of various blister molds, high-frequency molds, bakelite mold molds, blister aluminum molds, high-frequency molds, bakelite molds, heat-seal molds, heat-seal molds, etc.!


Application of high frequency membrane structure welding machine:


High-frequency membrane structure welding machine is widely used in: reinforced cloth, car tarpaulin, canvas splicing, tent cloth welding, PVC coated cloth welding, membrane structure splicing, outdoor membrane structure welding, PVC biogas digester welding, outdoor shade cloth welding, advertising Printing cloth welding, PVC inflatable products, canvas splicing, tent cloth welding, awning awning, membrane structure welding, PVC airbags, PVC mesh cloth welding, light rail platforms, sports stands, large tennis courts, movable folding awnings, canvas connections, Film curtain welding, outdoor film structure welding, outdoor shade cloth welding, advertising printing cloth welding, PVC inflatable products, PVC cloth welding or high frequency welding or splicing of soft plastic plastics of any material containing PVC components, soft curtain splicing, etc.


PVC cloth welding or high frequency welding or splicing of soft plastic plastics of any material containing PVC components. Through the principle of high frequency, it can be used to make high-frequency PVC biogas digester welding, PVC reservoir welding, PVC children's swimming pool welding, and it can also be used to make high-frequency car tarpaulin sails.
