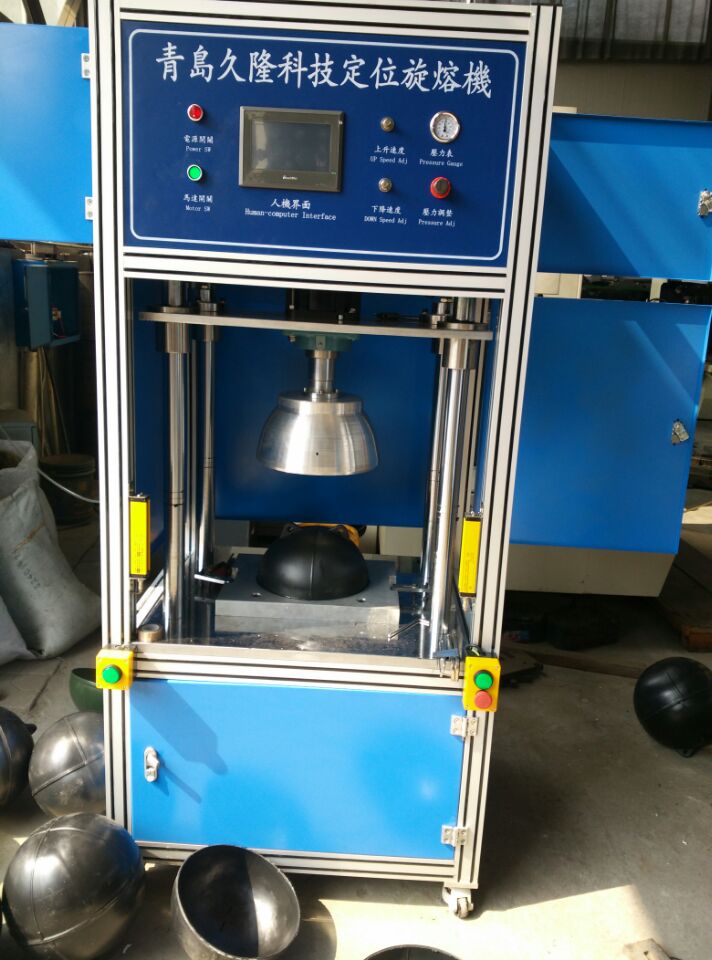

饮水杯盖旋转熔接机厂家

饮水杯盖旋转熔接机厂家

发布时间release time:2020-8-13 14:28:40

来源source:http://www.qdjiulong.com/product607285.html

在线咨询Online consultation 全国热线National Hotline
13969760683
产品简介Product

主要特点:

      适用于脱水接头、发动机滤杯、过滤器、冰杯等PE、PP、PET、尼龙等材质的管状或圆状物体的熔接,精心為製造廠所推出以不定圈數旋轉瞬間停在設定的刻度上,準確度可達1/16384刻度,機構穩固,防止啟動與瞬停集合伺服控制與,PLC程式控制,定位器功能于時之反作用力矩,一體設計,可任意調整轉速,時間,扭力,方向及密碼保護,防呆設計。

適用:PET、PP、尼龍、PE……等圓狀物或濾心等。


产品特点:

1. 全系列采人机界面触控屏幕

2. 全系列PLC程控

3. 采用日制YASKAWA高转矩伺服马达与驱动器

4. 加大机身大柱?120㎜与大型上下结构体,以防止启动与瞬停时之反作用力矩

5.上下导杆?35㎜以上,不受重力旋转加工有偏移公差

6. 定位旋熔与修边功能,在定位要求与外观毛料去除上能顺利达成任务。 (修边机种配备)

7. 下夹具底座特殊设计能搭配上工件之定位功能

8.模块化换模功能,全机NC精密零配件加工、组装。

产品规格:

型号JL-5P

尺寸L850*W650*H1985 mm

重量450 kg

电力220V∕380V∕3?∕20A

空压6kgf∕cm2∕30∕1Minute


main feature:

      Suitable for welding of tubular or round objects made of PE, PP, PET, nylon and other materials such as dehydration joints, engine filter cups, filters, ice cups, etc. It is carefully introduced by the manufacturer to stop at the set scale with an indefinite number of rotations. The accuracy can reach 1/16384 scale, the mechanism is stable, and it can prevent the start and instantaneous stop. The integrated servo control and the PLC program control, the positioner function in the time reaction torque, integrated design, can adjust the speed, time, torque, direction at will And password protection, foolproof design.

Application: PET, PP, nylon, PE... and other round objects or filter cores, etc.

Features:

1. Full range of HMI touch screens

2. Full range of PLC program control

3. Adopt Japanese YASKAWA high torque servo motor and driver

4. Enlarge the fuselage column ?120mm and large upper and lower structure to prevent the reaction moment during start and instant stop

5. The upper and lower guide rods are above ?35mm, and there is an offset tolerance in the processing without gravity rotation

6. Positioning spin melting and trimming function can successfully achieve the task in positioning requirements and appearance wool removal. (Equipped with trimming models)

7. The special design of the lower fixture base can match the positioning function of the upper workpiece

8. Modular mold change function, NC precision parts processing and assembly of the whole machine.

Specifications:

Model JL-5P

Size L850*W650*H1985 mm

Weight 450 kg

Electricity 220V∕380V∕3?∕20A

Air pressure 6kgf∕cm2∕30∕1Minute
