透析纸医疗热合机

透析纸医疗热合机

发布时间release time:2020-8-11 15:49:33

来源source:http://www.qdjiulong.com/product606150.html

在线咨询Online consultation 全国热线National Hotline
13969760683
产品简介Product

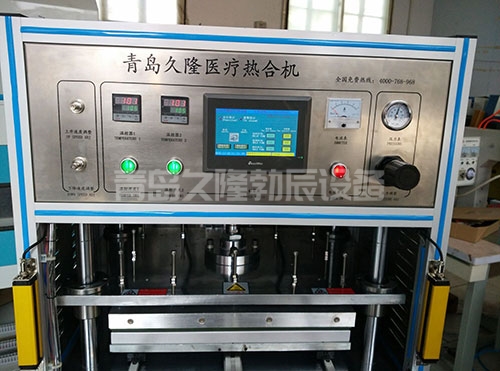

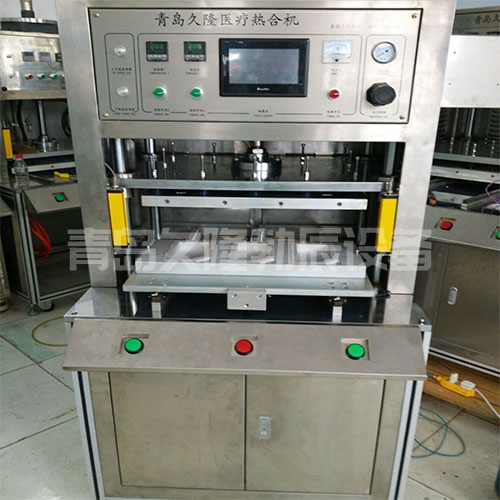

透析纸医疗热合机

       久隆医疗热合机,医疗焊接机,医疗杜邦纸Tyvek特卫强纸焊接机-适用于PVC、PET等塑胶吸塑盒与医疗用复合纸、透气纸等之间的熔接,适用于医疗特殊行业、一类、二类、三类医疗器械净化包装,如杜邦透吸纸和PET、医用PVC的熔接封口医疗塑胶制品生产。是新型环保医疗包装制品的专用设备。

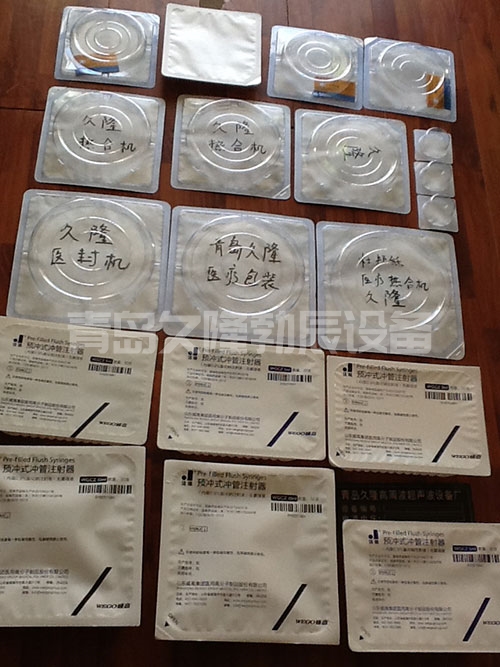

       透析纸用途:用于包装医疗器械进行灭菌,透析纸的好处是可以进出蒸汽,但不透水.医用透析纸;医用涂胶专用透析纸;输液器,注射器吸塑包装热合专用设备。医用透析纸,涂布层热合温度在120摄氏度左右,热合速度0.5-0.6秒,压力0.4Mpa,就可以达到每15mm剥离拉力不小于1.5N。提高了产品的品质,产品符合EN868标准。

        A、久隆设备杰出的质量与配套环保材料结构:

       1、优质的机体材料:日本SKD61模具钢、美铝钛合金7075.、不锈钢板304、直线导轨。

       2、新型环保品牌配件:PLC自动控制系统,日本欧姆龙,温控器、时间制、中停继电器,制温控模块。

       4  机架采用:新型环保铝合金支架+不锈钢板封板,机器所有零配件:全部电镀或铝合金。

山东久隆公司新型环保医疗吸塑热合机优势:

       新型环保产品系列医疗热合机,满足各类医疗器械灭菌包装封口包装的优点。

       性价优势化,能更联合满足苛刻质量包装的要求,定位准确合理。

       完备的人员配备,可多方位提供好的包装热封的效果。

       完善的质量体系,严格遵循欧盟与国际医疗器械灭菌包装标准订做加工设备。

       符合净化车间,满足对灭菌包材的基本要求。

       设备过程控制稳定,减少不必要的工作成本与产品不良的风险要数。

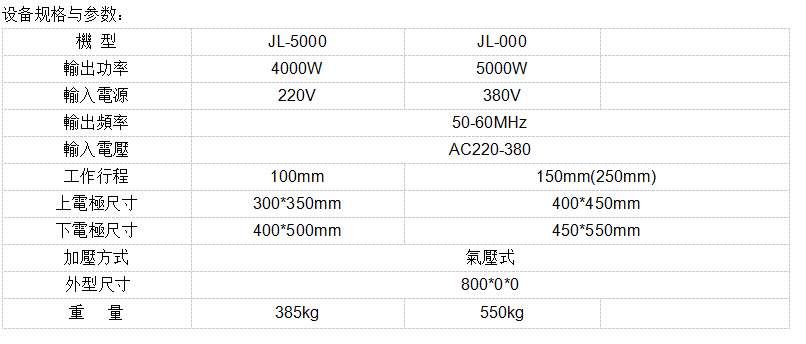

设备规格与参数:

機  型
JL-5000
JL-000

輸出功率
4000W
5000W

輸入電源
220V
380V

輸出頻率
50-60MHz
輸入電壓
AC220-380
工作行程
100mm
150mm(250mm)
上電極尺寸
300*350mm
400*450mm
下電極尺寸
400*500mm
450*550mm
加壓方式
氣壓式
     外型尺寸
800*0*0
重    量
385kg
550kg

Dialysis paper medical heat sealing machine


Jiulong Medical Heat Sealing Machine, Medical Welding Machine, Medical DuPont Paper Tyvek Tyvek Paper Welding Machine-Suitable for welding between plastic blister boxes such as PVC and PET and medical composite paper, breathable paper, etc., suitable for special medical industries, The production of clean packaging for Class I, Class II and Class III medical devices, such as the production of welded and sealed medical plastic products of DuPont permeable paper, PET and medical PVC. It is a special equipment for new environmentally friendly medical packaging products.


Use of dialysis paper: used for packaging medical equipment for sterilization. The advantage of dialysis paper is that it can enter and exit steam, but is impermeable. Medical dialysis paper; special dialysis paper for medical glue; infusion set, syringe blister packaging heat sealing special equipment. For medical dialysis paper, the heat sealing temperature of the coating layer is about 120 degrees Celsius, the heat sealing speed is 0.5-0.6 seconds, and the pressure is 0.4Mpa, which can achieve a peeling force of not less than 1.5N per 15mm. Improve the quality of the product, the product meets the EN868 standard.


A. Outstanding quality of Jiulong equipment and supporting environmental protection material structure:


1. High-quality body materials: Japanese SKD61 die steel, Alcoa titanium alloy 7075., stainless steel plate 304, linear guide.


2. New environmental protection brand accessories: PLC automatic control system, Japanese Omron, thermostat, time system, stop relay, system temperature control module.


4 Frame adopts: new environmental protection aluminum alloy bracket + stainless steel plate sealing plate, all parts of the machine: all electroplating or aluminum alloy.


Advantages of Shandong Jiulong Company's new environmental protection medical blister heat sealing machine:


The new environmentally friendly product series medical heat sealing machine meets the advantages of sterilization packaging and sealing packaging of various medical devices.


The advantages of price and performance can more unite to meet the requirements of demanding quality packaging, and the positioning is accurate and reasonable.


Complete staffing can provide good packaging and heat-sealing effects in many ways.


Complete quality system, strictly abide by EU and international medical device sterilization packaging standards to customize processing equipment.


It conforms to the purification workshop and meets the basic requirements for sterilization packaging materials.


The equipment process control is stable, reducing unnecessary work costs and the risk of bad products.


Equipment specifications and parameters:


Machine type

JL-5000

JL-000



Output Power

4000W

5000W



Input power

220V

380V



Output frequency

50-60MHz

Input voltage

AC220-380

work plan

100mm

150mm(250mm)

Upper electrode size

300*350mm

400*450mm

Lower electrode size

400*500mm

450*550mm

Pressure method

Pneumatic

     Dimensions

800*0*0

Weight

385kg

550kg
